WiseCube Power Supply / Cable Combination
Power Supply / Cable Combination
There are two different power supplies (bricks) being supplied with the Apple iPad MINI.
The A1401 and the A2167.
Your Mobile Point of Sale case comes with a USB-C to USB-A cable, which allows you to easily
connect and disconnect the brick to the case. This cable works with both bricks. The A2167 brick
requires a different hand shake protocol to supply maximum power to the case. Heartland has
included a black USB extension cable with the CONNECT case for this purpose. Without the USB
extension cable installed, the A2167 brick will only supply 8.8w of power to the case. With the USB
extension cable installed, the A2167 brick will supply the optimal 12.4w of power the case.
Note: Use of the extension cable wth the A1401 brick will have an adverse effect on charging and
will reduce the A1401 output from the optimal 12.4w . to 8.8w

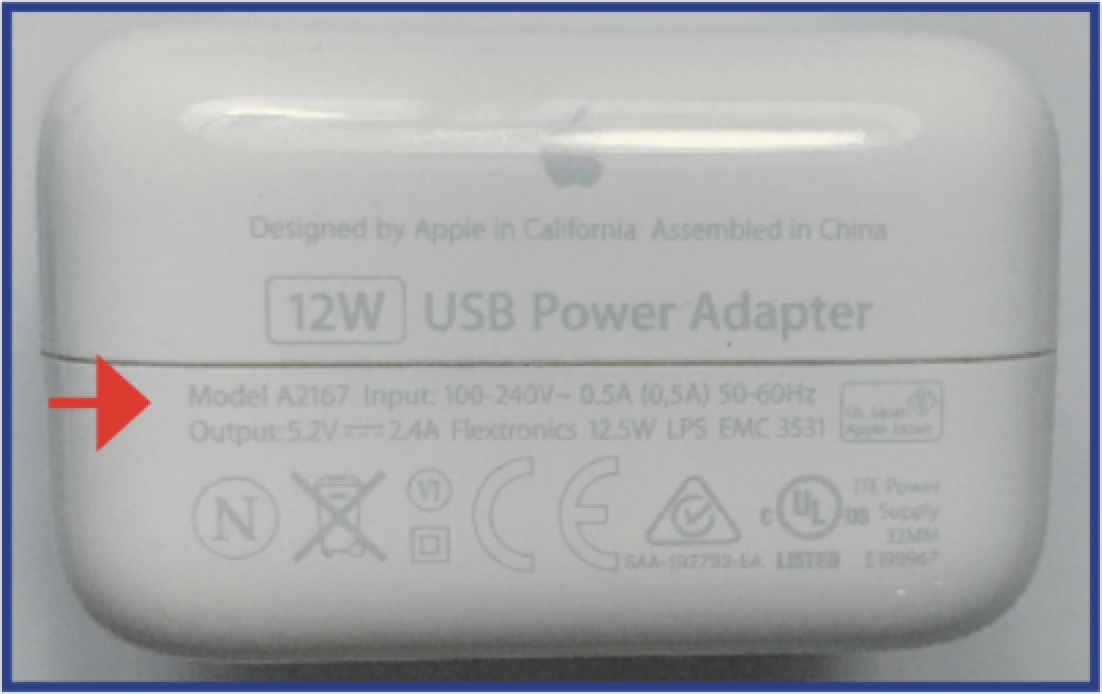

A2167 Requires black extension cable | A1401 Do NOT use black extension cable |
